BC5070 Small Square Baler

WASHER, 0.53'' ID x 1.06'' OD x 0.1'' Thk

SET SCREW, 1/4'' - 20 x 1/4''

NUT, 3/8'' - 16, Gr 5

WASHER, 1.14'' ID x 1.625'' OD x 0.125'' Thk

SPROCKET, 11T

BELLEVILLE WASHER, 10mm ID x 22mm OD x 1.6mm Thk

BRACKET

NUT, Hex, 1/4 - 20, Gr 5

HYDRAULIC CYLINDER, 76.2mm Bore Dia

LOCK WASHER, 1/20.507 CST ZND

NUT, 5/16'' - 18, Gr 5

HYD CONNECTOR

IDLER WHEEL

ADAPTER, 1/4'' NPT x 1/8'' NPT

BELLEVILLE WASHER, M6 Bolt Size x 14mm OD x 1.3mm Thk

BOLT, Hex, 1/2'' - 13 x 3'', Gr 5

CHAIN

SEAL KIT

CONNECTING LINK

CARRIAGE BOLT, Sht Sq Nk, 3/8'' - 16 x 1'', Gr 5, Full Thd

TUBE NUT, 0.72'' Length

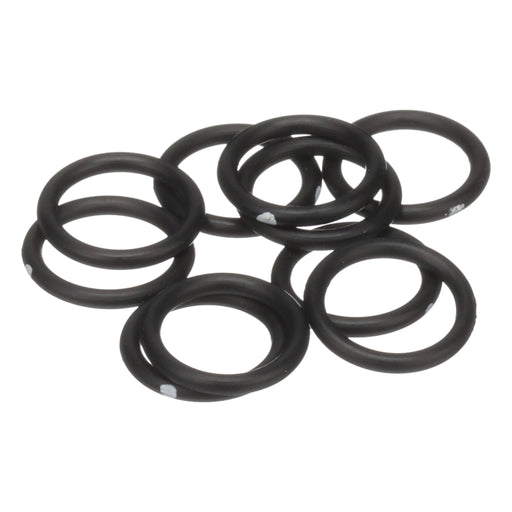

O-RING, 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro

BELLEVILLE WASHER, M8 Bolt Size x 18mm OD x 1.4mm Thk

BOLT, Hex, 3/8'' - 16 x 1'', Gr 5

HYD TUBE, 9.52 mm OD x 1619.2, 222 mm L

SPACER

CHAIN

CARRIAGE BOLT, Short Square Neck, 3/8'' - 16 x 1 1/4'', Grade 5

HOOK

WASHER, 0.53'' ID x 1.06'' OD x 0.1'' Thk

LOCK NUT, 3/4'' - 16

CARRIAGE BOLT, Short Sq Nk, 1/2'' - 13 x 2 3/4'', Gr 5

LOCK NUT PREVAILING TORQUE, PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional

HYDRAULIC CYLINDER, 50.8mm Rod, 76.2mm Stroke

BELLEVILLE WASHER, M6 Bolt Size x 14mm OD x 1.3mm Thk

WASHER, 17mm ID x 45mm OD x 6mm Thk

TUBE, 9.52 mm OD

HUB, 0.656'' ID x 1.500'' OD x 1.000'' L

SCREW, Hex, M16 x 60mm, Cl 8.8

CARRIAGE BOLT, Sht Sq Nk, 3/8'' - 16 x 1'', Gr 5, Full Thd

DRAIN PLUG, 1/4'' - 18 NPT

BELLEVILLE WASHER, 10mm ID x 22mm OD x 1.6mm Thk

IDLER WHEEL

ADAPTER

SLEEVE, 37 Degree, 3/8'' Tube

BOLT, Hex, 3/8'' - 16 x 1'', Gr 5

CONNECTING LINK

SET SCREW, 1/4'' - 20 x 1/4''
