200LC Loader (2017-)
Used on the Workmaster 25, the 200LC has a lift capacity of 1600lbs and a lift height of 94.3 ft.. Find parts for the 200LC here.
-
200LC PLUG
Original price $5.65 - Original price $5.65Original price$5.65$5.65 - $5.65Current price $5.65PLUG , Dust Plug, 3/8'' Male, Red
SKU: MT40228724

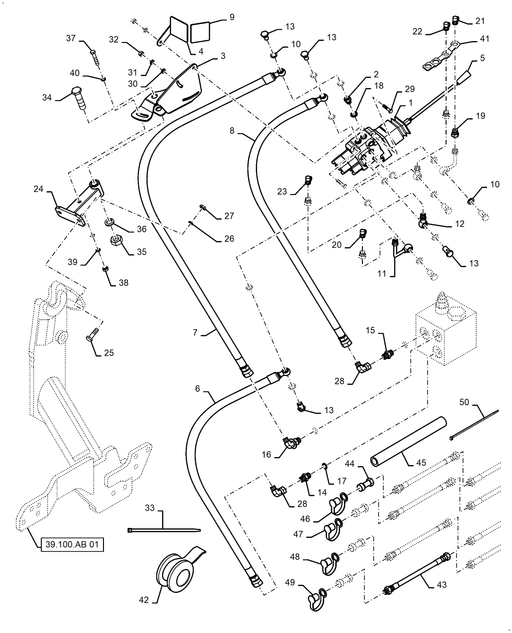

Diagram Ref. Number: 46
Status: In stockOriginal price $5.65 - Original price $5.65Original price$5.65$5.65 - $5.65Current price $5.65 -
200LC CLAMP
Original price $4.10 - Original price $4.10Original price$4.10$4.10 - $4.10Current price $4.10CLAMP
SKU: MT40256039
Diagram Ref. Number: 41
Status: In stockOriginal price $4.10 - Original price $4.10Original price$4.10$4.10 - $4.10Current price $4.10 -
200LC WASHER
Original price $5.25 - Original price $5.25Original price$5.25$5.25 - $5.25Current price $5.25WASHER , Spring Washer, M20
SKU: MT40228645
Diagram Ref. Number: 36
Status: In stockOriginal price $5.25 - Original price $5.25Original price$5.25$5.25 - $5.25Current price $5.25 -
200LC WASHER
Original price $3.80 - Original price $3.80Original price$3.80$3.80 - $3.80Current price $3.80WASHER , Spring, M8
SKU: MT40228640
Diagram Ref. Number: 31
Status: In stockOriginal price $3.80 - Original price $3.80Original price$3.80$3.80 - $3.80Current price $3.80 -
200LC DUST CAP
Original price $6.45 - Original price $6.45Original price$6.45$6.45 - $6.45Current price $6.45DUST CAP , 3/8'', Female, Blue
SKU: MT40228726
Diagram Ref. Number: 21
Status: In stockOriginal price $6.45 - Original price $6.45Original price$6.45$6.45 - $6.45Current price $6.45 -
200LC LUBE NIPPLE
Original price $34.10 - Original price $34.10Original price$34.10$34.10 - $34.10Current price $34.10LUBE NIPPLE
SKU: MT40228713
Diagram Ref. Number: 16
Status: In stockOriginal price $34.10 - Original price $34.10Original price$34.10$34.10 - $34.10Current price $34.10 -
200LC ADAPTER
Original price $26.00 - Original price $26.00Original price$26.00$26.00 - $26.00Current price $26.00ADAPTER , PF 3/8'' Benzo x P/T 3/8''
SKU: MT40228733
Diagram Ref. Number: 11
Status: In stockOriginal price $26.00 - Original price $26.00Original price$26.00$26.00 - $26.00Current price $26.00 -
200LC HYDRAULIC HOSE
Original price $73.70 - Original price $73.70Original price$73.70$73.70 - $73.70Current price $73.70HYDRAULIC HOSE , 3/8'' x 4-3/4'' x 850mm L
SKU: MT40228751
Diagram Ref. Number: 6
Status: In stockOriginal price $73.70 - Original price $73.70Original price$73.70$73.70 - $73.70Current price $73.70 -
200LC CABLE TIE
Original price $3.75 - Original price $3.75Original price$3.75$3.75 - $3.75Current price $3.75CABLE TIE , Black, 270mm
SKU: MT40228697
Diagram Ref. Number: 50
Status: In stockOriginal price $3.75 - Original price $3.75Original price$3.75$3.75 - $3.75Current price $3.75 -

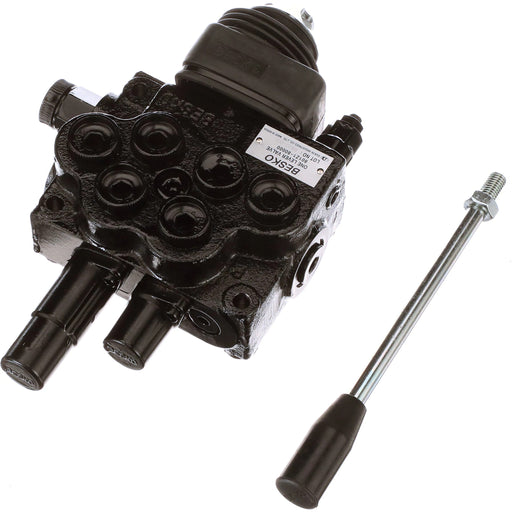

200LC VALVE
Original price $750.20 - Original price $750.20Original price$750.20$750.20 - $750.20Current price $750.20VALVE
SKU: MT40287435
Diagram Ref. Number: 1
Status: In stockOriginal price $750.20 - Original price $750.20Original price$750.20$750.20 - $750.20Current price $750.20 -
200LC PLUG
Original price $5.65 - Original price $5.65Original price$5.65$5.65 - $5.65Current price $5.65PLUG , Dust Plug, 3/8'' Male, Blue
SKU: MT40228722
Diagram Ref. Number: 47
Status: In stockOriginal price $5.65 - Original price $5.65Original price$5.65$5.65 - $5.65Current price $5.65 -
200LC PLUG
Original price $7.00 - Original price $7.00Original price$7.00$7.00 - $7.00Current price $7.00PLUG , Dust Plug, 3/8'' Male, Yellow
SKU: MT40228725
Diagram Ref. Number: 48
Status: In stockOriginal price $7.00 - Original price $7.00Original price$7.00$7.00 - $7.00Current price $7.00 -
200LC WASHER
Original price $3.30 - Original price $3.30Original price$3.30$3.30 - $3.30Current price $3.30WASHER , Plain, M10
SKU: MT40228647
Diagram Ref. Number: 40
Status: In stockOriginal price $3.30 - Original price $3.30Original price$3.30$3.30 - $3.30Current price $3.30 -

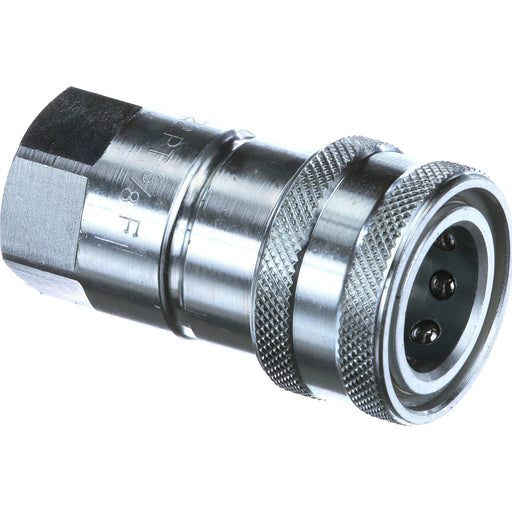

200LC COUPLING, QUICK, FEM
Original price $33.55 - Original price $33.55Original price$33.55$33.55 - $33.55Current price $33.55COUPLING, QUICK, FEM , PT 3/8''
SKU: MT40228721
Diagram Ref. Number: 44
Status: In stockOriginal price $33.55 - Original price $33.55Original price$33.55$33.55 - $33.55Current price $33.55 -

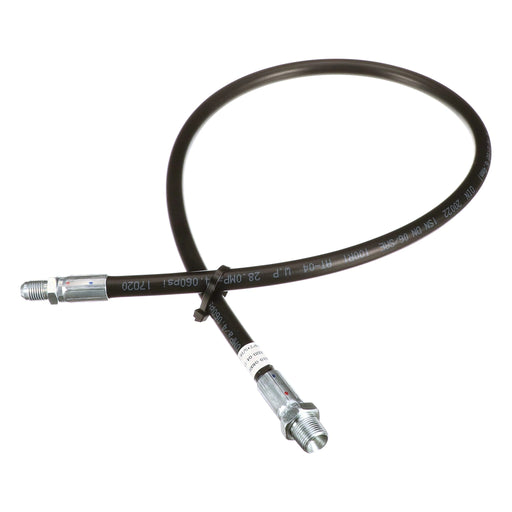

200LC HOSE
Original price $50.95 - Original price $50.95Original price$50.95$50.95 - $50.95Current price $50.95HOSE , Hose 9/16'' X 1000mm L
SKU: MT40340590
Diagram Ref. Number: 43
Status: In stockOriginal price $50.95 - Original price $50.95Original price$50.95$50.95 - $50.95Current price $50.95 -
200LC NUT
Original price $5.40 - Original price $5.40Original price$5.40$5.40 - $5.40Current price $5.40NUT , Hex, M20 x 2.5
SKU: MT40228639
Diagram Ref. Number: 35
Status: In stockOriginal price $5.40 - Original price $5.40Original price$5.40$5.40 - $5.40Current price $5.40 -
200LC Hex Bolt
Original price $8.00 - Original price $8.00Original price$8.00$8.00 - $8.00Current price $8.00Hex Bolt , Hex, M10 x 1.5 x 65mm L
SKU: MT40228609
Diagram Ref. Number: 37
Status: In stockOriginal price $8.00 - Original price $8.00Original price$8.00$8.00 - $8.00Current price $8.00 -
200LC CABLE TIE
Original price $4.60 - Original price $4.60Original price$4.60$4.60 - $4.60Current price $4.60CABLE TIE , Black, 540mm
SKU: MT40228698
Diagram Ref. Number: 33
Status: In stockOriginal price $4.60 - Original price $4.60Original price$4.60$4.60 - $4.60Current price $4.60 -
200LC Hex Bolt
Original price $11.00 - Original price $11.00Original price$11.00$11.00 - $11.00Current price $11.00Hex Bolt , Hex, M20 x 2.5 x 110mm L
SKU: MT40228628
Diagram Ref. Number: 34
Status: In stockOriginal price $11.00 - Original price $11.00Original price$11.00$11.00 - $11.00Current price $11.00 -
200LC NUT
Original price $3.80 - Original price $3.80Original price$3.80$3.80 - $3.80Current price $3.80NUT , Hex, M8 x 1.25
SKU: MT40228629
Diagram Ref. Number: 32
Status: In stockOriginal price $3.80 - Original price $3.80Original price$3.80$3.80 - $3.80Current price $3.80 -
200LC WASHER
Original price $3.80 - Original price $3.80Original price$3.80$3.80 - $3.80Current price $3.80WASHER , Plain, M8
SKU: MT40228646
Diagram Ref. Number: 30
Status: In stockOriginal price $3.80 - Original price $3.80Original price$3.80$3.80 - $3.80Current price $3.80 -
200LC Hex Bolt
Original price $5.75 - Original price $5.75Original price$5.75$5.75 - $5.75Current price $5.75Hex Bolt , Hex, M8 x 1.25 x 65mm L
SKU: MT40229893
Diagram Ref. Number: 29
Status: In stockOriginal price $5.75 - Original price $5.75Original price$5.75$5.75 - $5.75Current price $5.75 -
200LC NIPPLE
Original price $20.35 - Original price $20.35Original price$20.35$20.35 - $20.35Current price $20.35NIPPLE , 3/4'' - 16 UNF, Swivel 90 Degree
SKU: MT40228710
Diagram Ref. Number: 28
Status: In stockOriginal price $20.35 - Original price $20.35Original price$20.35$20.35 - $20.35Current price $20.35 -
200LC NUT
Original price $3.25 - Original price $3.25Original price$3.25$3.25 - $3.25Current price $3.25NUT , Hex, M12 x 1,75
SKU: MT40228631
Diagram Ref. Number: 27
Status: In stockOriginal price $3.25 - Original price $3.25Original price$3.25$3.25 - $3.25Current price $3.25 -
200LC DUST CAP
Original price $7.40 - Original price $7.40Original price$7.40$7.40 - $7.40Current price $7.40DUST CAP , 3/8'', Female Red
SKU: MT40228728
Diagram Ref. Number: 20
Status: In stockOriginal price $7.40 - Original price $7.40Original price$7.40$7.40 - $7.40Current price $7.40 -

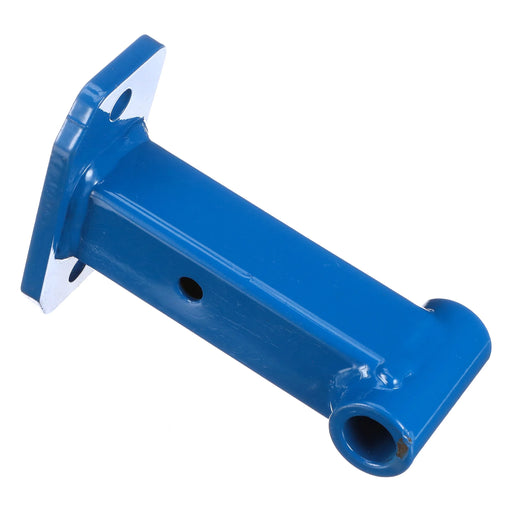

200LC BRACKET
Original price $69.45 - Original price $69.45Original price$69.45$69.45 - $69.45Current price $69.45BRACKET , Valve Bottom
SKU: MT40378338
Diagram Ref. Number: 24
Status: In stockOriginal price $69.45 - Original price $69.45Original price$69.45$69.45 - $69.45Current price $69.45 -
200LC O-RING
Original price $4.95 - Original price $4.95Original price$4.95$4.95 - $4.95Current price $4.95O-RING, P18
SKU: MT40228757
Diagram Ref. Number: 17
Status: In stockOriginal price $4.95 - Original price $4.95Original price$4.95$4.95 - $4.95Current price $4.95 -
200LC SEAL
Original price $2.55 - Original price $2.55Original price$2.55$2.55 - $2.55Current price $2.55SEAL , 1/2''
SKU: MT40228653
Diagram Ref. Number: 18
Status: In stockOriginal price $2.55 - Original price $2.55Original price$2.55$2.55 - $2.55Current price $2.55 -
200LC COUPLING, QUICK
Original price $15.55 - Original price $15.55Original price$15.55$15.55 - $15.55Current price $15.55COUPLING, QUICK , PT 3/8''
SKU: MT40228720
Diagram Ref. Number: 19
Status: In stockOriginal price $15.55 - Original price $15.55Original price$15.55$15.55 - $15.55Current price $15.55 -
200LC NIPPLE
Original price $16.35 - Original price $16.35Original price$16.35$16.35 - $16.35Current price $16.35NIPPLE , PF 1/2'' x 3/4'' - 16UNF
SKU: MT40228718
Diagram Ref. Number: 15
Status: In stockOriginal price $16.35 - Original price $16.35Original price$16.35$16.35 - $16.35Current price $16.35 -

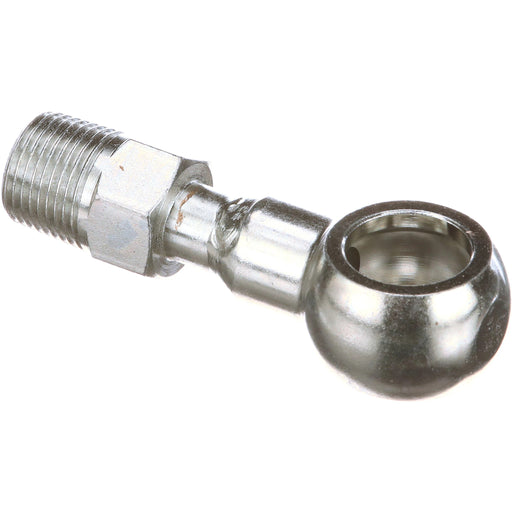

200LC ADAPTER
Original price $19.65 - Original price $19.65Original price$19.65$19.65 - $19.65Current price $19.65ADAPTER , PF 3/8'' Benzo x P/T 3/8'', 75 Degree
SKU: MT40228732
Diagram Ref. Number: 12
Status: In stockOriginal price $19.65 - Original price $19.65Original price$19.65$19.65 - $19.65Current price $19.65 -
200LC NIPPLE
Original price $12.30 - Original price $12.30Original price$12.30$12.30 - $12.30Current price $12.30NIPPLE , PF 3/8''
SKU: MT40228731
Diagram Ref. Number: 13
Status: In stockOriginal price $12.30 - Original price $12.30Original price$12.30$12.30 - $12.30Current price $12.30 -
200LC SEAL
Original price $2.05 - Original price $2.05Original price$2.05$2.05 - $2.05Current price $2.05SEAL , 3/8''
SKU: MT40228654
Diagram Ref. Number: 10
Status: In stockOriginal price $2.05 - Original price $2.05Original price$2.05$2.05 - $2.05Current price $2.05 -
200LC DECAL
Original price $5.20 - Original price $5.20Original price$5.20$5.20 - $5.20Current price $5.20DECAL
SKU: MT40228763
Diagram Ref. Number: 9
Status: In stockOriginal price $5.20 - Original price $5.20Original price$5.20$5.20 - $5.20Current price $5.20 -
200LC CONTROL LEVER
Original price $22.75 - Original price $22.75Original price$22.75$22.75 - $22.75Current price $22.75CONTROL LEVER
SKU: MT40264310
Diagram Ref. Number: 5
Status: In stockOriginal price $22.75 - Original price $22.75Original price$22.75$22.75 - $22.75Current price $22.75 -
200LC ADAPTER
Original price $35.60 - Original price $35.60Original price$35.60$35.60 - $35.60Current price $35.60ADAPTER , Hydraulic Connector
SKU: MT40287436
Diagram Ref. Number: 2
Status: In stockOriginal price $35.60 - Original price $35.60Original price$35.60$35.60 - $35.60Current price $35.60 -
200LC PLATE
Original price $12.55 - Original price $12.55Original price$12.55$12.55 - $12.55Current price $12.55PLATE
SKU: MT40378337
Diagram Ref. Number: 4
Status: In stockOriginal price $12.55 - Original price $12.55Original price$12.55$12.55 - $12.55Current price $12.55
